Fire Alarms

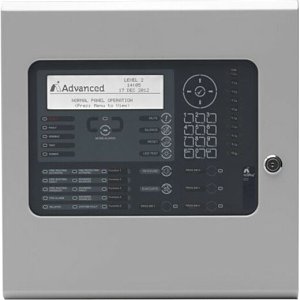

🔥 Advanced Fire Panel – Feature Overview

Advanced fire alarm panels are high-performance control units designed for use in a wide variety of environments—from small commercial buildings to large multi-site facilities. They are known for being intelligent, expandable, and easily programmable, with strong integration capabilities and best-in-class performance.

🧰 Core Features of Advanced Fire Panels

1. Modular & Scalable Design

  • Available in single-loop to 8-loop configurations

  • Expandable using networkable panels across large sites

  • Each loop supports up to 240 devices (depending on protocol and loop type)

2. Multi-Protocol Support

  • Supports leading detector protocols including:

    • Apollo

    • Hochiki ESP

    • Argus Vega

    • Nittan Evolution

  • Allows you to tailor the system to different detector types or retrofit existing systems

3. Touchscreen Interface & User-Friendly Navigation

  • Large graphical LCD or color touchscreen interface

  • Intuitive menu structure for quick navigation and fault analysis

  • Customizable text for device labels and zones

4. High-Speed Networking

  • Ad-NeT+ fault-tolerant network for up to 200 panels or repeaters

  • Secure and fast panel-to-panel communication across wide areas

  • Allows full control and monitoring across buildings or sites

5. Powerful Cause & Effect Programming

  • Up to 5000 cause & effect entries per panel

  • Conditional logic and timers enable advanced response programming

  • Supports phased evacuation, multi-stage alerts, smoke control integration, and more

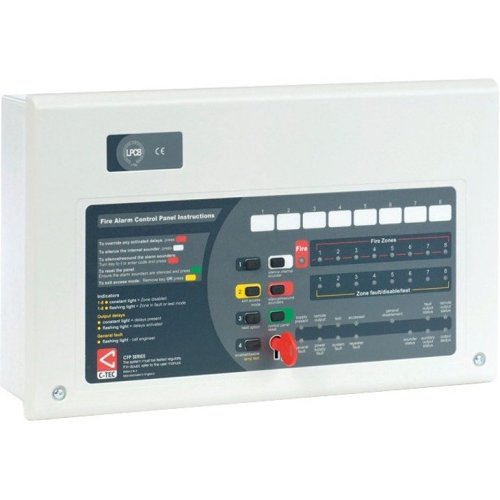

🔥 C-TEC Conventional Fire Panel – Feature Overview

C-TEC (Computionics Limited) is a UK-based fire alarm system manufacturer with decades of experience in the fire protection industry. Their conventional fire alarm panels are designed to provide essential life safety functions without the complexity of addressable systems, making them ideal for low to medium-risk buildings such as schools, small offices, hotels, and care homes.

🧰 Core Features of C-TEC Conventional Fire Panels

✅ 1. Multiple Zone Capacity

  • Available in 2, 4, 8-zone models (CFP series) or up to 32 zones (FP series with zone card expansion)

  • Each zone supports multiple detectors and call points

  • LED indicators for each zone (Fire, Fault, Disabled)

✅ 2. Ease of Installation and Setup

  • Intuitive layout and wiring with colour-coded terminals

  • No complex programming — just straightforward setup

  • Designed for loop or radial wiring with standard EOL (End-of-Line) resistors

✅ 3. User-Friendly Front Panel Interface

  • Clearly labelled Fire, Fault, Power, Test Mode LEDs

  • Membrane or key-operated control buttons (Reset, Sound Alarms, Silence, Test)

  • Option for key-switch or code-based access to control levels

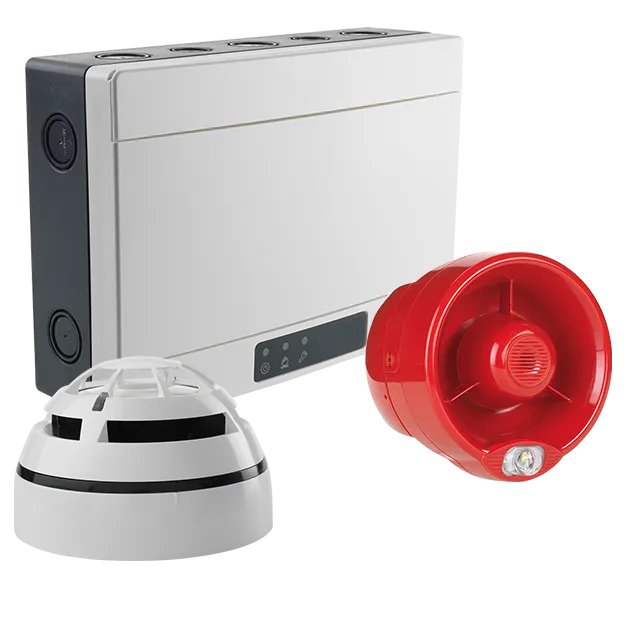

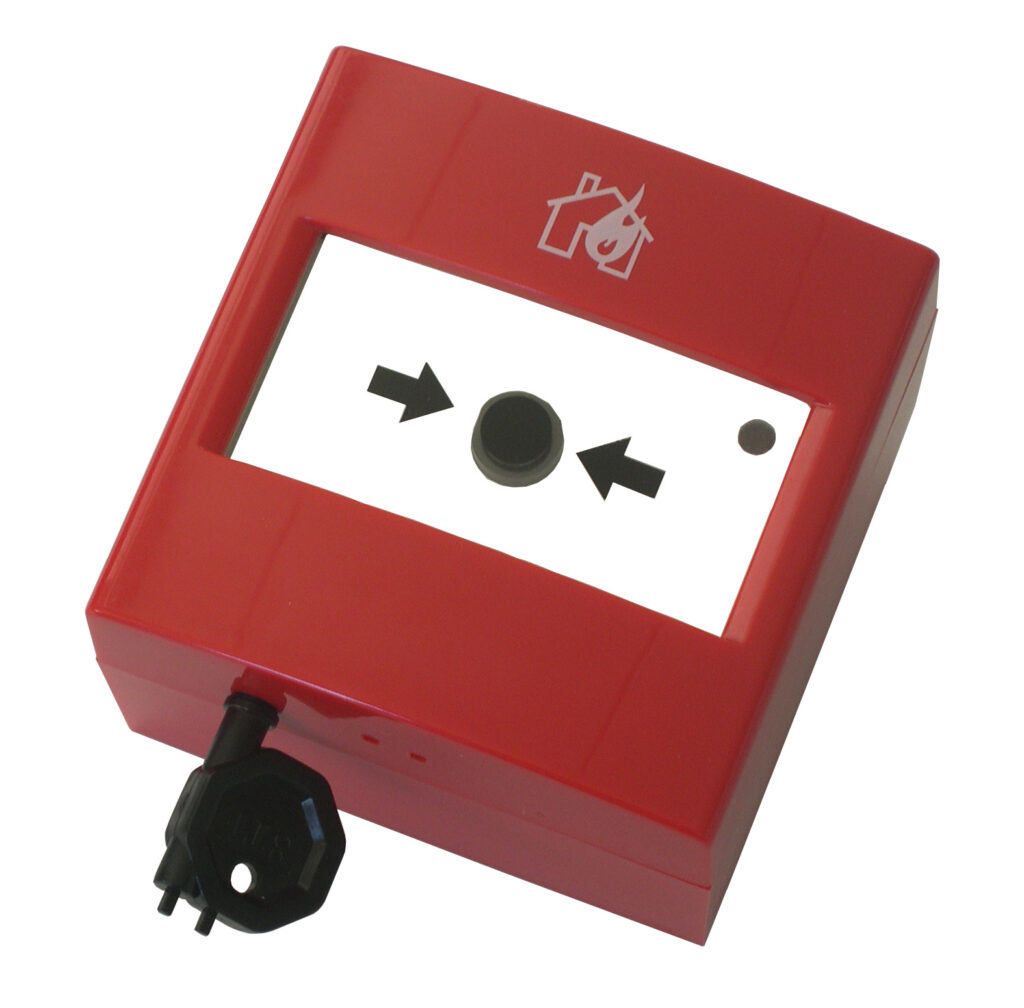

Sygno‑Fi Wireless Fire Detection – High‑Performance Safety

Sygno‑Fi is a cutting-edge EN54-certified wireless (or hybrid) fire detection and alarm. Designed with flexibility and resilience in mind, it’s ideal for both retrofit and new-build projects.

🔑 Key Benefits & Features

  • Open-Protocol Certification
    Seamlessly integrates with most addressable fire panels—no vendor lock-in and flexibility in choosing control equipment. Scalable Device Support

    • Up to 128 wireless devices per translator

    • 240 devices per hybrid loop Robust Dual‑Redundant Mesh Topology
      Uses 60 radio channels, dual-channel redundancy, and expander modules to ensure resilient signal routing—even if components fail. **Exceptional Battery Life**
      Detectors, call points, and input modules: 10-year life
      Sounders, VADs, and outputs: 5-year life

  • Long-Range Wireless Communication
    Translator features up to ~1 km open-air range; proprietary orthogonal antenna design enhances reliability.
